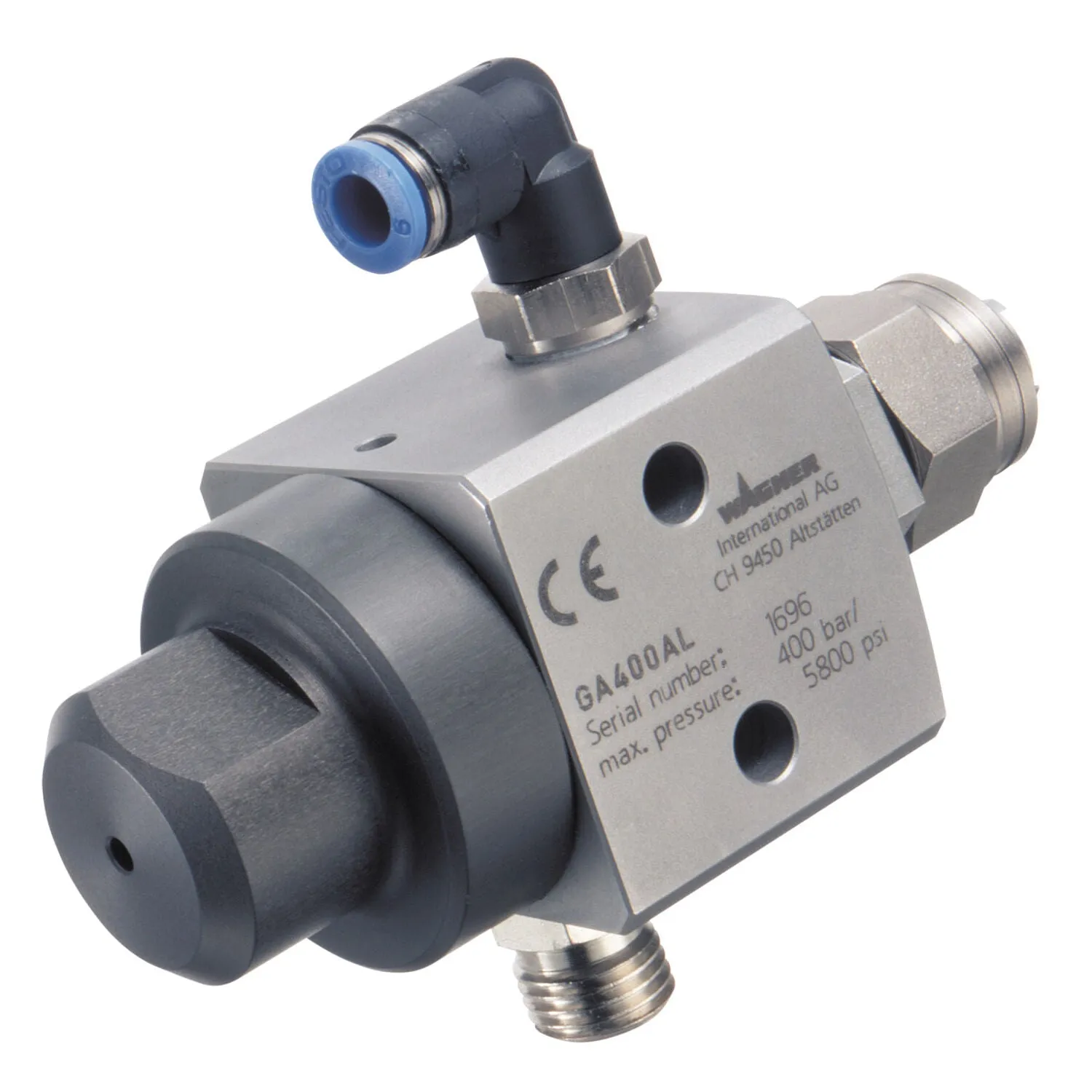

GA 250/400AL Compact Automatic Airless Gun
Manufacturer: Wagner
Part #: 350032, 350033
Description: Compact automatic airless gun for automatic applications. The WAGNER GA 250AL and 400AL airless guns are known for their robustness in daily use as well as their high atomization quality. Different WAGNER nozzle systems can be applied.
2 different pressure ranges are available for different areas of use:
- GA 250AL = 25 MPa; 250 bar; 3626 psi
- GA 400AL = 40 MPa; 400 bar; 5802 psi
Benefits:
- Strong Performance - All wetted parts are made of stainless steel. This ensures a long service life and high corrosion resistance of the gun.
- Reliable - The precise switching accuracy of the gun enables coating results that can be reproduced at any time, thus ensuring high process reliability.
- Flexible applications - WAGNER airless spray guns allow proper atomization even with higher material viscosity.
Specifications:
| Application area | Metal coating, Wood coating |
| Application technique | Airless |
| Processable materials | Water-borne, Solvent-borne, Abrasive, sensitive to moisture |
| Material wetted parts | Stainless steel, Tungsten carbide, UHMW-PE |
| Certification | Complies with ATEX directive, Complies with CE directive |
| Dimensions | 104 x 40 x 40 mm |
| Weight | 545 g |
| Control air connection | F G 1/8'' |
| Air inlet pressure | 4.5-8 bar |
| Max. material pressure | 250 bar; 400 bar |
| Max. sound level | 84 dB(A) |
| Nozzle size | 0.007-0.052 " |
Parts and Accessories:
- - Airless Flat Jet Nozzle Standard Tip
- - Piston
- - Pressure spring 25 MPa; 250 bar; 3626 psi
- - Pressure spring 40 MPa; 400 bar; 5800 psi
- * - Piston seal
- * - Valve rod
- 350512 - Gun housing, GA 250AL
- - Gun housing, GA 400AL
- - Sealing screw
- * - Sealing collar
- - Thrust piece
- * - Spring washer set (6 pieces)
- - Screw plug
- - Plug
- * - Intermediate piece
- * - Seal
- - Hexagon nut, M3
- - AL clamping nut, complete
- * - Seal
- - Pressure ring
- - Union nut
- - Service set
* = included in service set
